Hunter SkyCommand A2C-LORA 915 MHz LoRa Output Module (A2C-LORA)

Hunter A2C-LORA — The LoRa Radio That Reaches SkyCommand BOCs

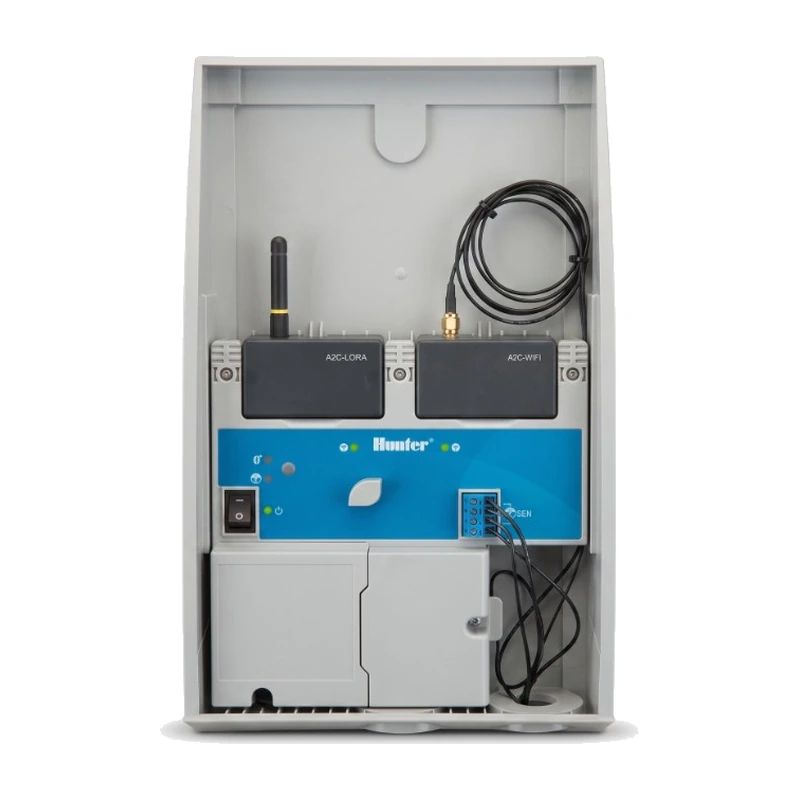

The Hunter A2C-LORA is the 915 MHz LoRa field-communication module for North American SkyCommand. It clicks into either slot of the UCH and talks directly to battery-operated BOC controllers. The remaining slot is reserved for one cloud module (A2C-WIFI, A2C-LAN, or A2C-LTEM). Screw the antenna on the module, or use ANT-EXT-KIT to put the antenna outdoors. Hunter states A2C-LORA is not currently compatible with ACC2 — UCH hubs only.

Key Specifications & Features

• SKU: A2C-LORA
• Brand: Hunter Irrigation
• Band: 915 MHz LoRa (North America / select Latin America)
• International: Use A2C-LORA-E at 433 MHz (not this SKU)
• Fits: Hunter UCH only (either module slot)
• Not for: ACC2 controllers
• Antenna: Outdoor; ANT-EXT-KIT recommended (9 ft, 25 ft max)
• Channels: 10, selected from Centralus
• Status LEDs: Green blink = RX/TX; amber = provisioning; red = replace module
• Memory: No program memory; power-cycle only

SkyCommand System Companions

• Hunter A2C-WIFI — 2.4 GHz Wi-Fi cloud module for the UCH (or ACC2)
• Hunter A2C-LAN — Ethernet cloud module
• Hunter A2C-LTEM — LTE cellular cloud module (service plan required)
• Hunter RPT — solar wireless repeater for LoRa range extension
• Hunter ANT-EXT-KIT — 9 ft outdoor antenna extension (recommended)
• Hunter 458200 — DC-latching solenoid, up to 100 ft from each BOC

Frequently Asked Questions

Will A2C-LORA plug into my ACC2?
No. Hunter’s A2C-LORA installation guide says the module is not currently compatible with ACC2. It is only for the SkyCommand UCH.

Do I still need A2C-WIFI if I buy A2C-LORA?
A2C-LORA is the field radio. You still need one cloud module (Wi-Fi, LAN, or LTE) in the other UCH slot so Centralus can reach the site.

Where should the LoRa antenna go?
Outdoors. If the UCH is indoors, or you want better coverage, use ANT-EXT-KIT. Do not exceed 25 ft of antenna cable.

What does a red LED under the module mean?
A solid red LED means module error. Hunter says replace the module. Amber is provisioning; solid green is ready; fast green blink is traffic.

Manufacturer documentation: Hunter SkyCommand product page.
