Specifications

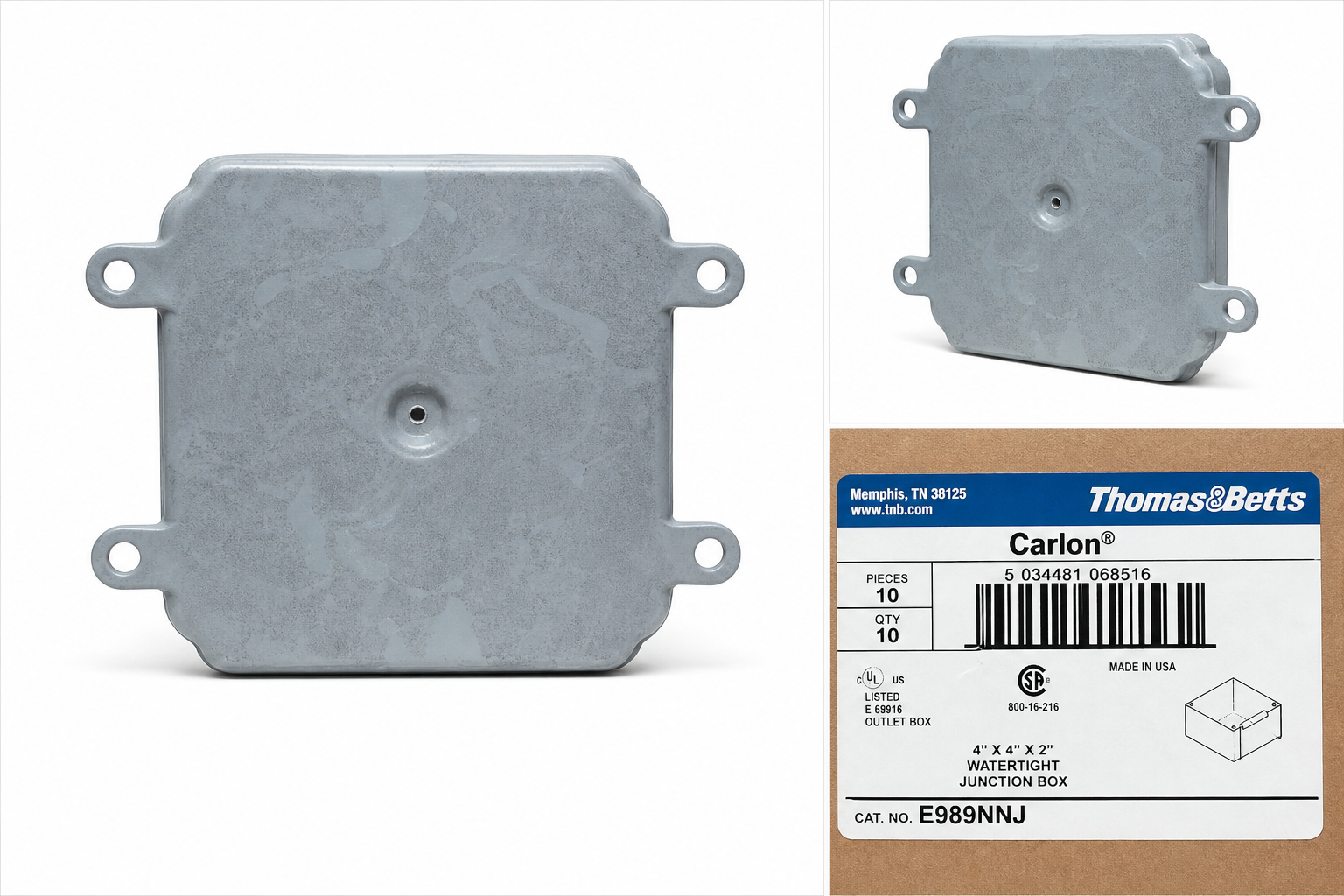

- Model: E989NNJ
- Dimensions: 4 x 4 x 2 inches (external) / 3.69 x 3.69 x 2 inches (internal)
- Material: PVC thermoplastic molding compound (non-metallic, rigid)
- Color: Gray
- NEMA Rating: 4X / 6P
- Cover: Screw-on with foam-in-place gasket
- Screws: Stainless steel
- Mounting: Surface mount (without knockout)
- Weight: 0.52 lbs
- UPC: 034481066811
NEMA Ratings Explained
- NEMA 4X: Protection against windblown dust and rain, splashing water, hose-directed water, corrosion, and external ice formation
- NEMA 6P: All of the above PLUS prolonged submersion at a limited depth – the highest water protection rating
Features
- First non-metallic junction box with NEMA 6P submersion rating
- Corrosion-resistant PVC – will never rust
- Foam-in-place gasket provides watertight seal
- Stainless steel cover screws prevent corrosion
- No knockouts – drill your own entry points for a custom watertight fit
- UL Listed
- Made in U.S.A.
Applications
- Landscape lighting connections in wet or submerged areas
- Direct burial wiring junctions
- Pool, spa, and fountain electrical connections
- Irrigation controller and valve wiring enclosures
- Coastal and marine environment installations
- Underground junction boxes where flooding is a concern
