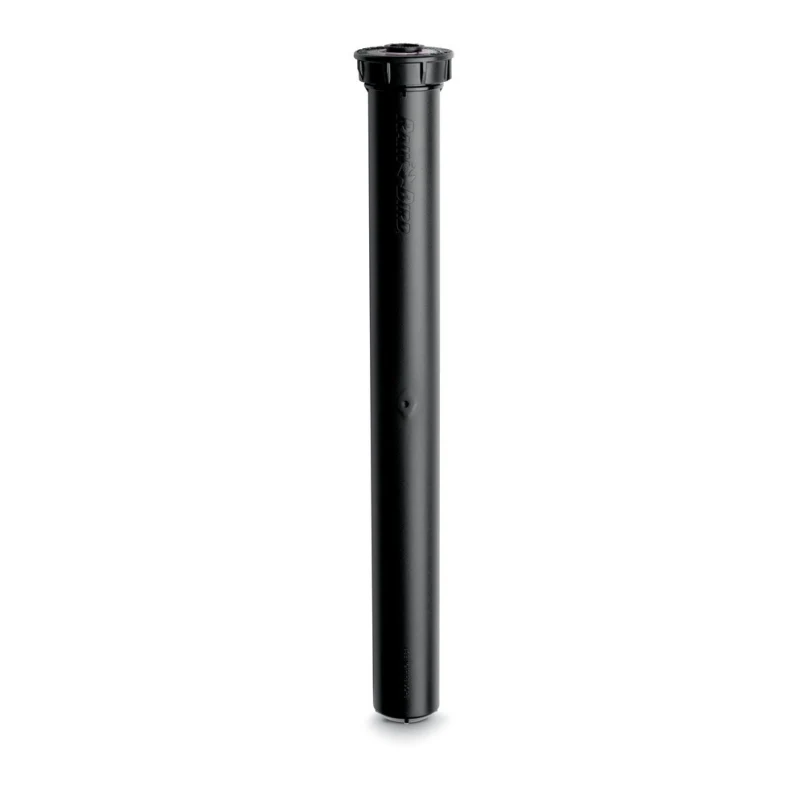

Rain Bird RD1800 Series RD12-S-P30-F case
Contractor case of 50 Rain Bird RD1800 Series RD12-S-P30-F pop-up spray bodies (order number A37321). Each body is the 12 in. pop-up. The carton is bodies only. It is not a nozzle-installed spray head.
Specifications
- Manufacturer model RD12-S-P30-F. Rain Bird order number A37321.
- 12 in. (30.5 cm) pop-up; 16 in. (40.6 cm) body height.
- 1/2 in. (15/21) NPT female inlet.
- Exposed surface diameter 2 1/4 in. (5.7 cm).
- Operating pressure 15 to 100 psi (1.0 to 6.9 bar).
- Seal-A-Matic check valve holds up to 14 ft (4.2 m) of elevation, about 6 psi. SAM models are bottom inlet.
- SAM flow-by: 0 gpm at 15 psi (1.0 bar) or greater; 0.5 gpm otherwise.
- In-stem PRS holds nozzle pressure near 30 psi (2.1 bar). 30 psi is the spray-nozzle setting. 45 psi is the rotary-nozzle setting. PRS bodies are WaterSense certified.
- Flow-Shield limits water loss when a nozzle is missing and throws a low stream that can be seen from about 200 ft.
- UV-resistant plastic body, stainless steel retraction spring, and co-molded wiper seal. Five-year trade warranty.
- Case quantity: 50 bodies. Spray nozzle is not in the carton.
Case contents
50 units per case. Planning weight for this case is 17.5 lb. Sell price is per case.
Common questions
Does this case include spray nozzles? No. These are RD12-S-P30-F bodies only. A nozzle is not installed and is not in the carton. The body accepts Rain Bird plastic spray and rotary nozzles sold separately.
What pop-up height is this body? This RD1800 body has a 12 in. pop-up. The canister is 16 in. (40.6 cm) tall.
Does the body have a Seal-A-Matic check valve? Yes. SAM holds water in the lateral through about 14 ft of elevation change so the lowest head does not drain the pipe after the valve closes.
What pressure does the stem regulate to? The built-in PRS holds about 30 psi at the nozzle. Use 30 psi with spray nozzles and 45 psi with rotary nozzles.
