- To prevent water waste, built-in Quick Response technology instantly shuts down irrigation as soon as it starts raining
- Instant Quick Response rain shutoff and freeze shutoff at 37°F
- Maintenance-free design with integrated battery for wireless models
- Adjustable vent ring allows for shorter or longer reset period
Set Wireless Rain-Clik Transmitter Address
Only needed if transmitter or receiver is replaced, or purchased separately.
-
Step 1: Remove power from the controller.

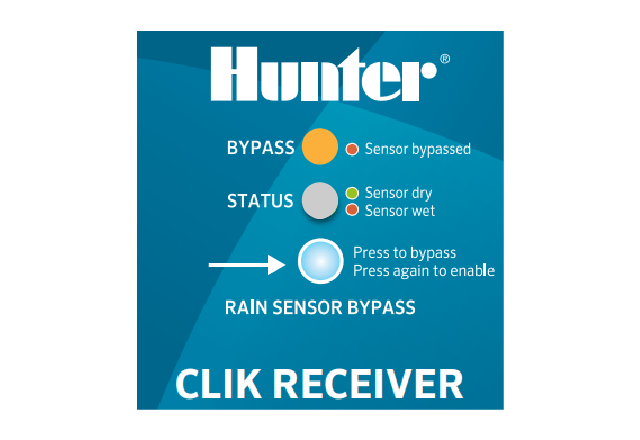

Press and hold the Bypass button on the receiver.
-
Step 2: While holding the button, restore power.

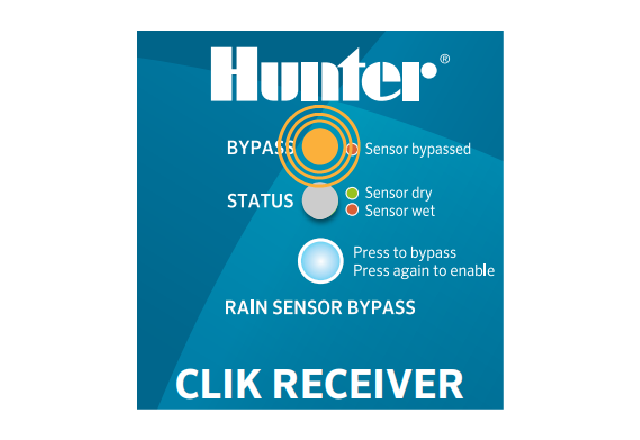

The sensor LED should turn amber, indicating the receiver is ready to pair.
-

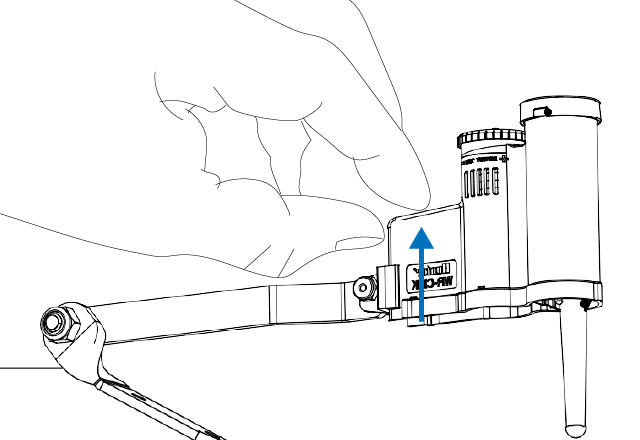

Step 3: Press and hold the Quick Response button on the transmitter for 5 seconds.
-

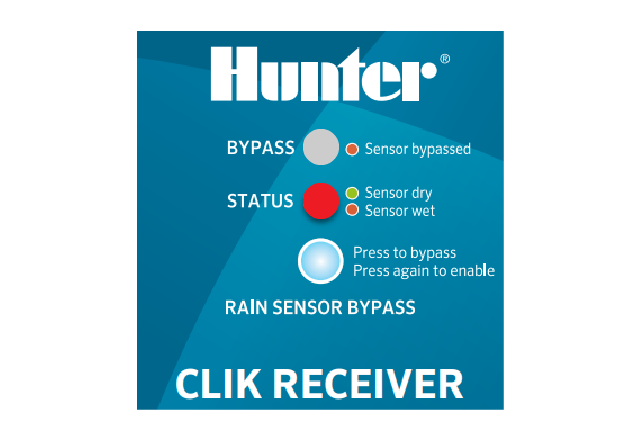

Step 4: Within 4 seconds, the receiver LED should turn red, meaning the address was learned.
-
Step 5: Release the transmitter button.
The LED should turn green to confirm successful pairing.
Note: When power is restored, the LED may stay red while syncing (up to 1 hour).
To sync immediately, press and hold the “Test” button for 5 seconds, then release. The LED should turn green.
