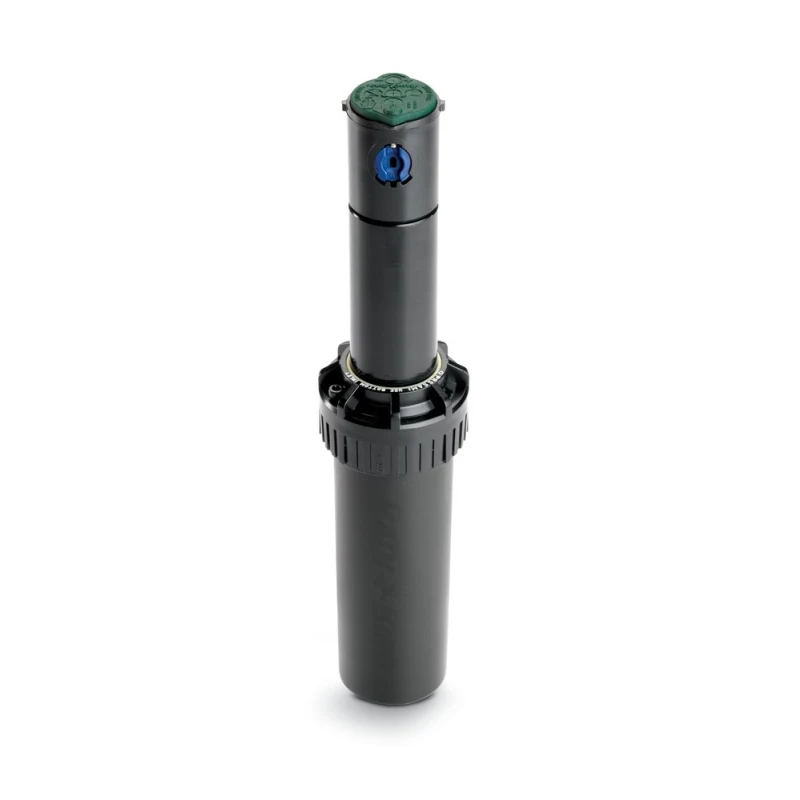

Rain Bird 5004 Plus 4 in. 5000 Series Part-Circle Rotor with Flow Shut-Off and 2.0 GPM Nozzle, Case of 20 (Y4510020-CASE)
This carton is 20 Rain Bird 5004+PC20 rotors, manufacturer Y4510020. Rain Bird 5004 Plus 4 in. 5000 Series Part-Circle Rotor with Flow Shut-Off and 2.0 GPM Nozzle is the single-head configuration inside the case. Rain Bird publishes this head as a 4 in. pop-up. Performance figures below are the series ranges Rain Bird prints for the nozzle set, not a single-nozzle promise.
Key Specifications
5000 Series figures below come from the Rain Bird page for this model, plus the case quantity.
- Case quantity: 20 rotors
- Manufacturer model: 5004+PC20
- Manufacturer SKU: Y4510020
- Inlet: 3/4 in. NPT female
- Body: 4 in. pop-up
- Published radius range: 25 to 50 feet. Radius may be reduced up to 25% with the radius reduction screw.
- Published pressure: 25 to 65 psi
- Published flow range: 0.73 to 9.63 gpm across the nozzle set
- Published precipitation rate: 0.20 to 1.01 inches per hour
- Nozzle supplied on this model: 2.0 GPM
- Plus flow shut-off: included on this Plus model
How many rotors are in this case?
The case contains 20 Rain Bird 5004+PC20 rotors, manufacturer Y4510020.
What arc does this model cover?
This is a part-circle model. Rain Bird specifies reversing arc adjustment from 40 to 360 degrees.
Which options does this model include?
This model includes Plus flow shut-off. It does not include SAM, PRS, a stainless riser, or a non-potable cover.
What inlet and radius does Rain Bird publish?
Rain Bird lists a 3/4 in. NPT female inlet and a radius range of 25 to 50 feet for this series. Published flow is 0.73 to 9.63 gpm across the nozzle set. Match the nozzle and pressure to the site before you set spacing.
