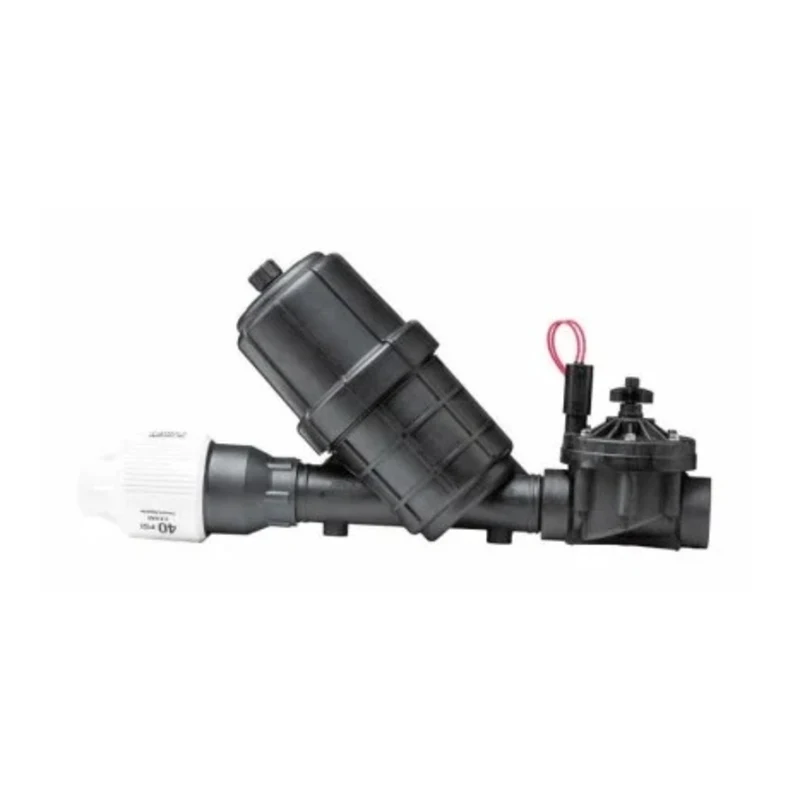

Hunter ICZ-201D-40-XL 2″ Drip Control Zone Kit, 40 PSI, 120 Mesh Disc, 20–100 GPM (ICZ-201D-40-XL)

Hunter ICZ-201D-40-XL — 2″ Drip Control Zone Kit with 120 Mesh Disc Filter

The Hunter ICZ-201D-40-XL is a factory-assembled drip zone: an ICV valve, a 120 mesh disc filter, and a 40 PSI regulator. It feeds a high-flow drip zone at a steady outlet pressure. Genuine, brand-new Hunter product.

Key Specifications & Features

• SKU: ICZ-201D-40-XL
• Brand: Hunter
• Size: 2″ inlet
• Outlet pressure: 40 PSI
• Flow: 20–100 GPM
• Filter: 120 mesh disc
• Operating pressure: up to 120 PSI
• Operating temperature: up to 120°F
• UPC: 196055079433

Where It Installs

Set the ICZ-201D-40-XL at the start of a drip or micro-irrigation zone that needs filtration and pressure control in one assembly. Match the 2″ inlet to the lateral, and keep the zone flow inside 20–100 GPM so the regulator and disc filter stay in range.

Frequently Asked Questions

What is the Hunter ICZ-201D-40-XL?
It is a 2″ drip control zone kit with 40 PSI regulation and a 120 mesh disc filter, rated 20–100 GPM.

How is ICZ-201D-40-XL different from the screen-filter ICZ kit?
This model ships with the 120 mesh disc filter. The screen-filter kits are separate SKUs.

What pressure does the ICZ-201D-40-XL hold?
The regulator holds about 40 PSI at the outlet. Inlet operating pressure is up to 120 PSI.

Does the kit include the valve, filter, and regulator?
Yes. The ICZ-201D-40-XL is one assembly: ICV valve, 120 mesh disc filter, and 40 PSI regulator.

How is warranty handled?
Warranty terms are set by Hunter. See Hunter’s published warranty for drip control zone kits.
