FX Luminaire

FX Luminaire A-BR10 Aluminum Bollard Path Light Line Voltage

Price range: $2,337.30 through $3,339.00 /each

SKU: A-BR10
FX Luminaire brand
Free shipping — no order minimum

Please Note: This is a custom-built product manufactured upon order. Delivery typically takes 4-6 weeks. As these items are made-to-order, please verify all SKUs carefully before purchase. Special orders cannot be returned or exchanged.

Engineered with sharp lines and rounded curves, the A-BR10 complements traditional, modern, and classical architecture and blends seamlessly into projects of all scopes. Quick Facts:

  • Die-cast/extruded aluminum
  • Xicato® LED module
  • Glare-free illumination on ground surfaces
  • Dimming: Phase or 0–10V (60 Hz only)
  • Tamper-resistant features
  • Input voltage: 110–277V
  • Two-layer, marine-grade anodization and powder coat finish
  • IP65
FX Luminaire A-BR10 Aluminum Bollard Path Light Line Voltage
FX Luminaire A-BR10 Aluminum Bollard Path Light Line Voltage
$2,337.30 – $3,339.00Price range: $2,337.30 through $3,339.00 /each
Ordering Information – Spec Builder Select your specifications
FIXTUREPOWEROUTPUTCCTLENSORIENTATIONFINISH
A-BR10SV 120V/60HzL07 319-990 LumensK27 2,700K[DEFAULT] Clear LensGP Ground PlaneBZ Bronze Metallic
L10 444-1,347 LumensK30 3,000KFR Frosted LensGG Ground/GroundDG Desert Granite
L13 614-1,803 LumensK40 4,000KGV Ground/VerticalWI Weathered Iron
L20 988-2,977 LumensSB Sedona Brown
FB Flat Black
FW Flat White
SV Silver
Example: A-BR10 – SV – L07 – K27 – GP – BZ
OUTPUTL07L10L13L20
GPGGGVGPGGGVGPGGGVGPGGGV
Total Lumens*
     Short3196436084448788446141,2141,1669881,9571,877
     Medium3987627605491,0891,0427561,4971,4271,2662,4272,311
     Long4969909476761,3471,2859181,8031,7431,5192,9772,803
Input Power (W)7.615.015.010.922.122.115.330.730.724.549.349.3
VA7.915.515.511.222.822.815.631.031.024.849.849.8
Efficacy (Lumens/Watt)42 – 6641 – 6641 – 6641 – 6239 – 6139 – 6141 – 6038 – 5938 – 5941 – 6339 -6139 – 61
Color Rendering Index (CRI)828282828282828282818182
Center Beam Candlepower (CBCP)
     Short3863923765365485287467487241,2201,2161,138
     Medium4224294085825945728128127881,2991,2951,214
     Long4424484316116225988388388141,3551,3511,248
DimmingPhase, 0-10VPhase, 0-10VPhase, 0-10VPhase, 0-10V
Minimum Rated Life (L70)50,000 Hours50,000 Hours50,000 Hours50,000 Hours
Luxor® Compatibility
      ZD OptionsLuxor CUBE RequiredLuxor CUBE RequiredLuxor CUBE RequiredLuxor CUBE Required
IES Classification
     ShortType IIType IIType II†Type IIType II†Type II†Type IIType II†Type II†Type IIType II†Type II†
     MediumType IIType III†Type IIType IIType III†Type IIType IIType III†Type IIType IIType III†Type II
     LongType IIIType III†Type III†Type IIIType IIIType III†Type IIType IIIType III†Type IIIType IIIType III
* Lumen output does not change according to specified CCT. Measurements taken with FW Flat White finish. For SV Silver multiply values by 0.74; for BZ Bronze Metallic multiply by 0.61; for FB Black multiply by 0.59; for FR Frosted Lens multiply by 0.82.† Indicates extrapolated data.

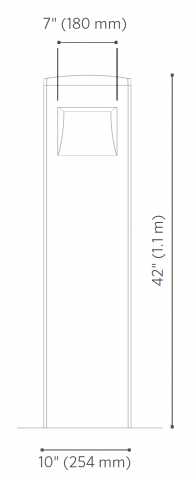

A-BR10 Dimensions

fx luminaire a br10 aluminum bollard pat a br10 dimension FX Luminaire A-BR10

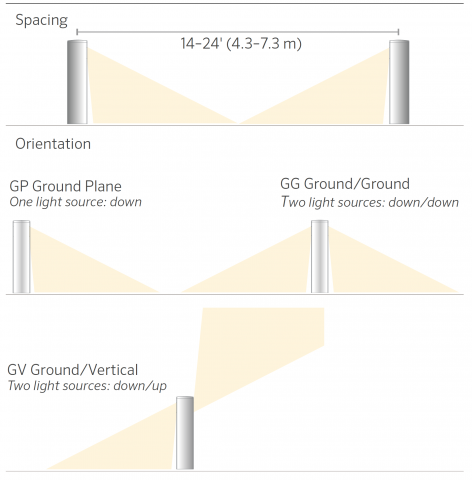

A-BR10 Spacing and Orientation

fx luminaire a br10 aluminum bollard pat a br10 spacing orientation FX Luminaire A-BR10

A-BR10 Photometrics

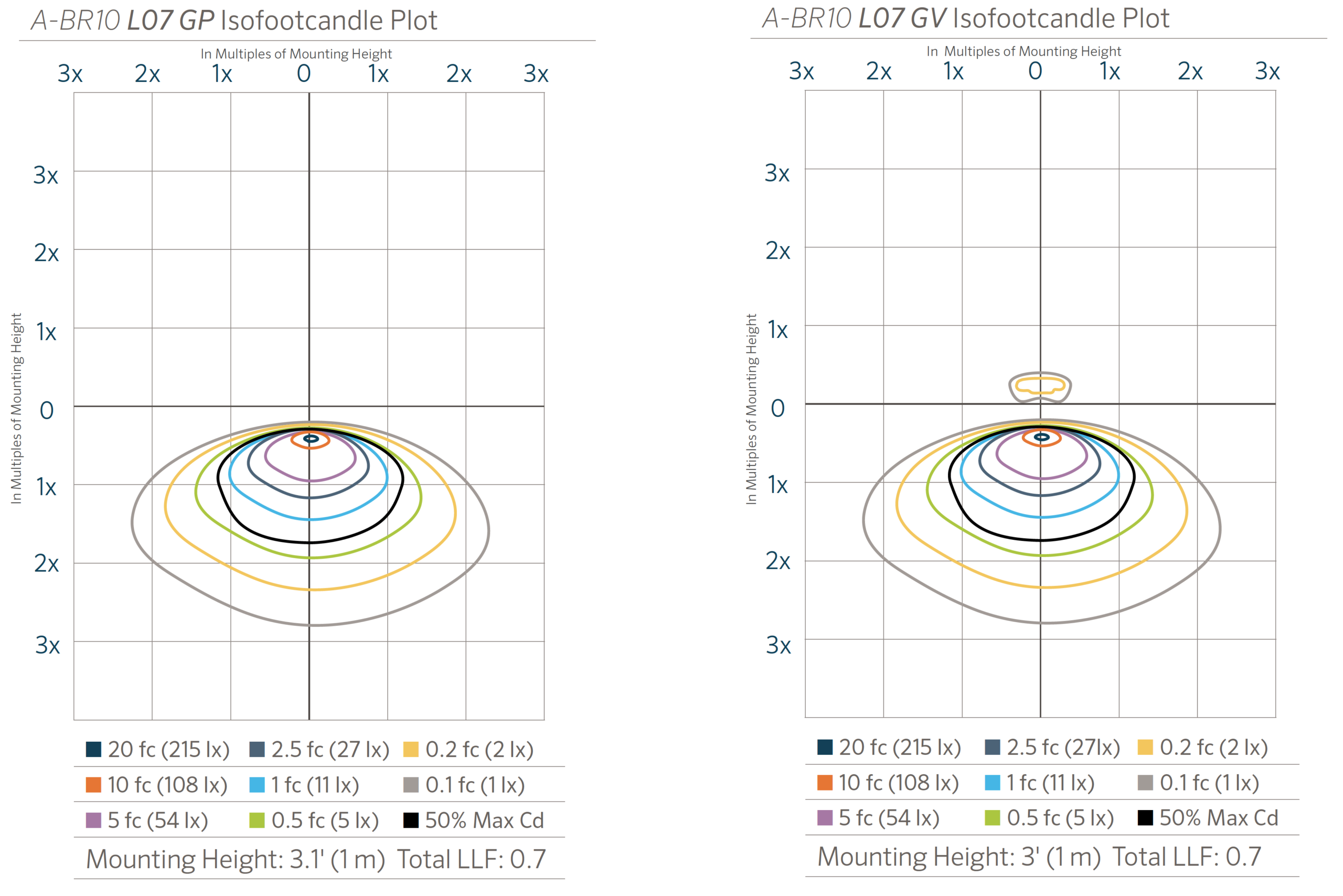

fx luminaire a br10 aluminum bollard pat a br10 l07 isofootcandle plot scaled FX Luminaire A-BR10

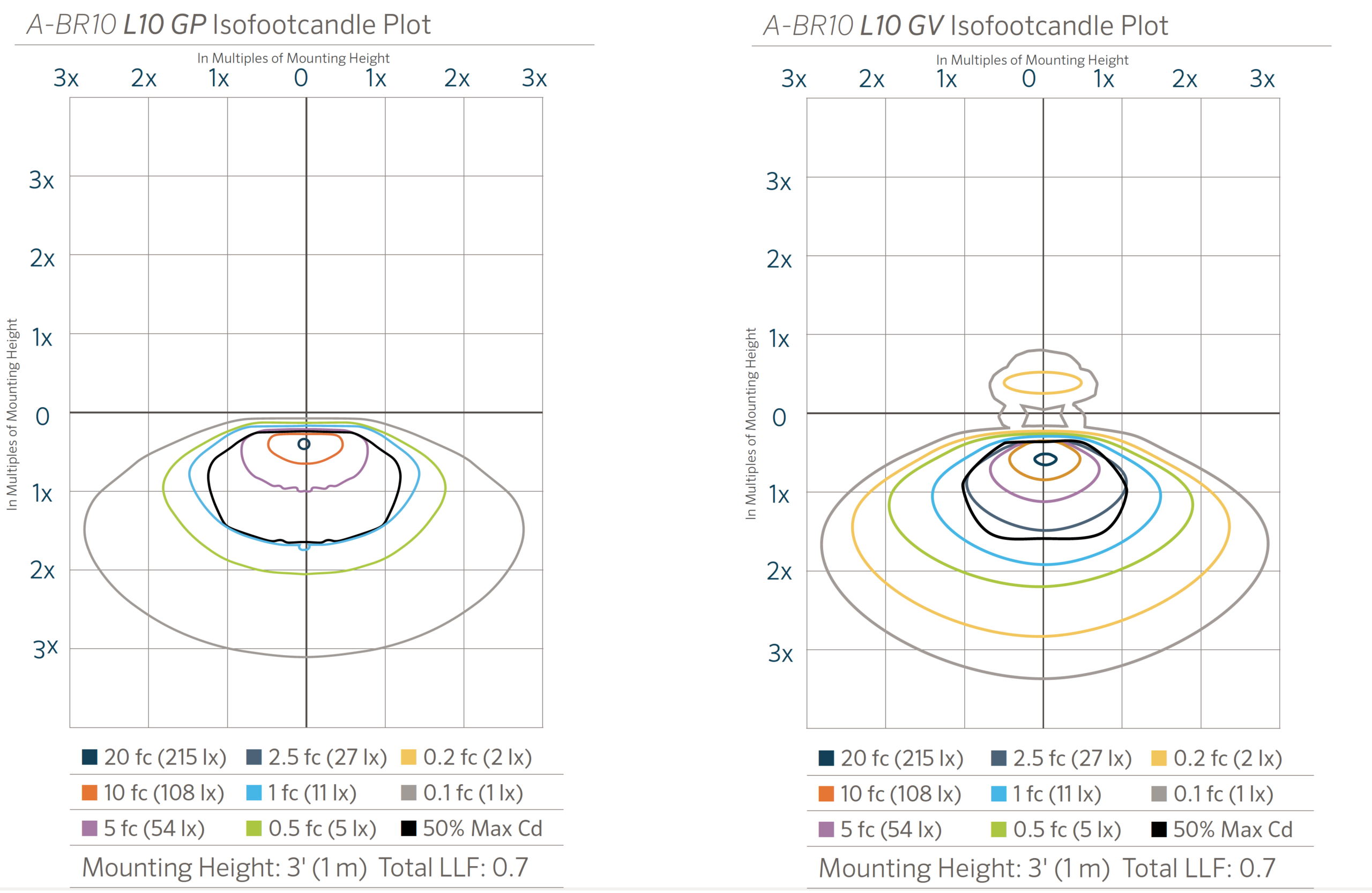

fx luminaire a br10 aluminum bollard pat a br10 l10 isofootcandle plot scaled FX Luminaire A-BR10

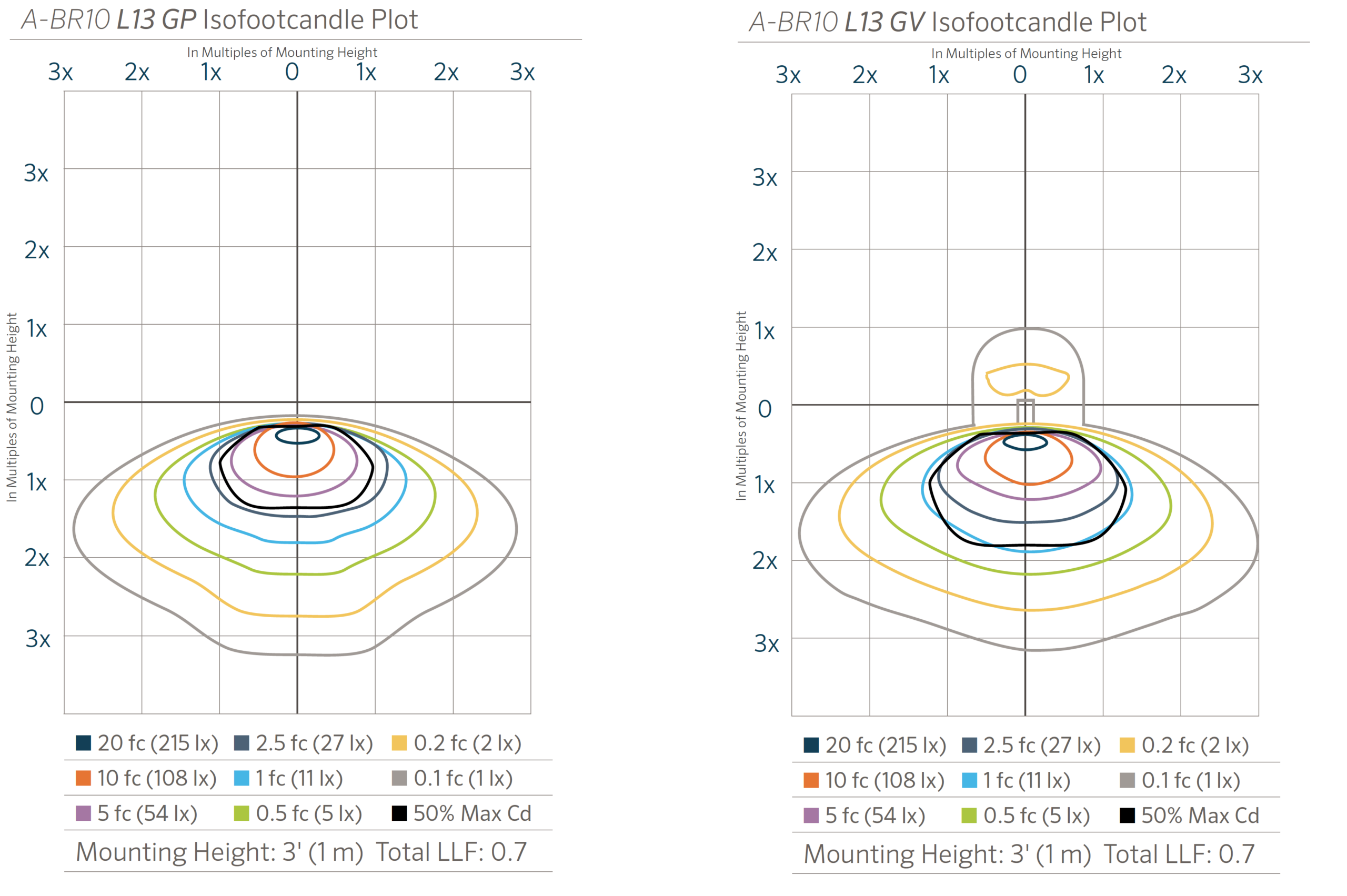

fx luminaire a br10 aluminum bollard pat a br10 l13 isofootcandle plot 1 scaled FX Luminaire A-BR10
fx luminaire a br10 aluminum bollard pat a br10 l13 isofootcandle plot 0 scaled FX Luminaire A-BR10

Additional information

Weight30 lbs
Dimensions42 × 10 × 10 in
Brand: No selection

Power Control: No selection

SV (120V/60Hz) Phase (UL listed)

Output: No selection

L07 (319-990 Lumens), L10 (444-1,347 Lumens), L13 (614-1,803 Lumens), L20 (988-2,977 Lumens)

Color Temperature: No selection

K27 (2,700K), K30 (3,000K)

Lens: No selection

Clear Lens

Orientation: No selection

GP (Ground Plane), GG (Ground/Ground), GV (Ground/Vertical)

Finish: No selection

BZ (Bronze Metallic), FB (Black), FW (Flat White), SV (Silver)

Voltage: No selection

Finish: No selection

Type: No selection

,

Material: No selection
