FX Luminaire A-ST5 Aluminum Down Light Line Voltage

FX Luminaire

Price range: $834.75 through $1,446.90 /each

SKU: A-ST5

Output: No selection

More options

Color Temperature: No selection

More options

Optics: No selection

More options

Finish: No selection

More options

Add to wishlist

The curvilinear, organic form of the A-ST5 down light begins as an eased square that gently transitions to a circle. Inside, a removable cartridge houses all components for easy servicing.

Quick Facts:

Die-cast aluminum
Xicato® LED module
Removable lighting cartridge
Input voltage: 110–277V
Two-layer, marine-grade anodization and powder coat finish
Dimming: Phase or 0-10V
Tamper-resistant features
IP66

Ordering Information – Spec Builder Select your specifications

FIXTURE	POWER	OUTPUT	CCT	OPTICS	FINISH
A-NK6	SV 120V/60Hz	L07 569-645 Lumens	K27 2,700K	SP 20°	BZ Bronze Metallic
		L10 824-895 Lumens	K30 3,000K	FL 40°	DG Desert Granite
		L13 1,069-1,161 Lumens	K40 4,000K	WF 60°	WI Weathered Iron
		L20 1,682-1,836 Lumens			SB Sedona Brown
					FB Flat Black
					FW Flat White
					SV Silver

Example: A-ST5 – SV – L07 – K27 – SP – BZ

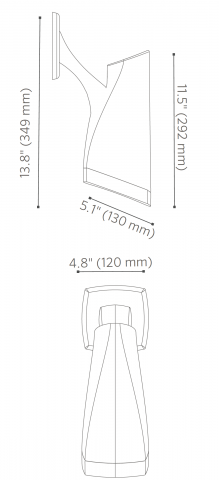

A-ST5 Dimensions

a st5 dimensions FX Luminaire A-ST5

A-ST5 Photometrics

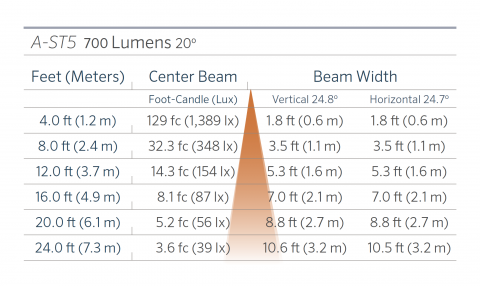

a st5 700 20 0 FX Luminaire A-ST5

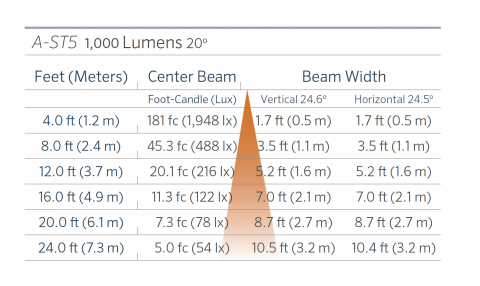

a st5 1000 20 FX Luminaire A-ST5

a st5 700 40 0 FX Luminaire A-ST5

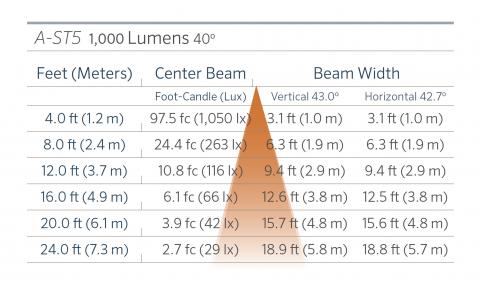

a st5 1000 40 FX Luminaire A-ST5

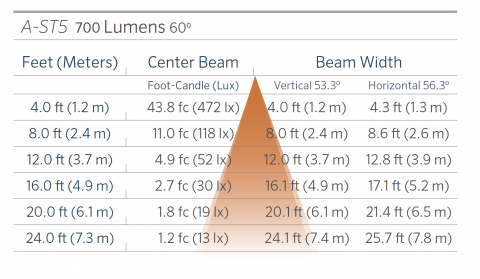

a st5 700 60 0 FX Luminaire A-ST5

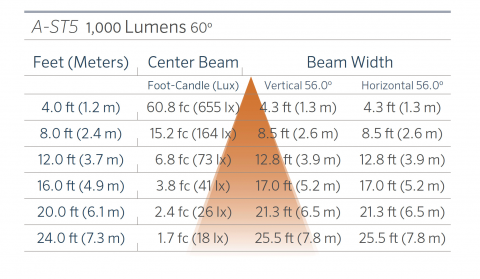

a st5 1000 60 FX Luminaire A-ST5

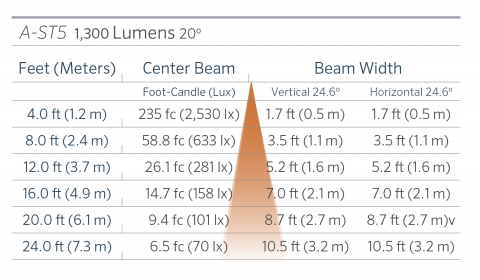

a st5 1300 20 0 FX Luminaire A-ST5

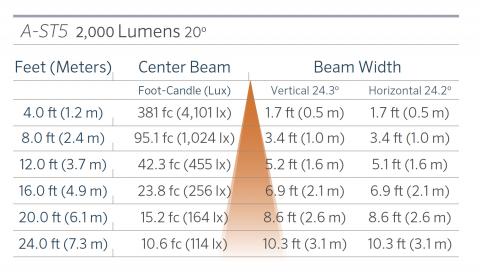

a st5 2000 20 FX Luminaire A-ST5

a st5 1300 40 0 FX Luminaire A-ST5

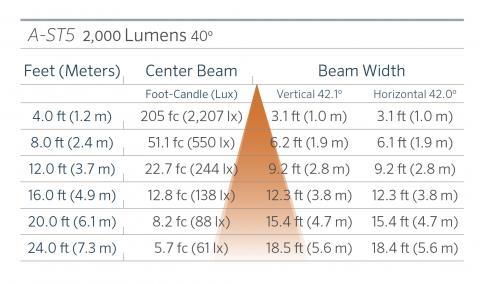

a st5 2000 40 FX Luminaire A-ST5

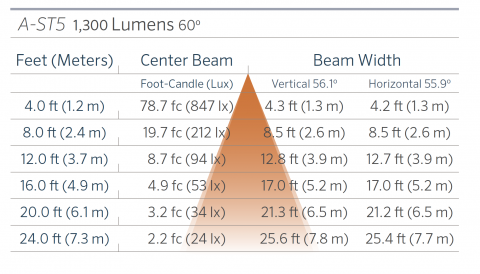

a st5 1300 60 0 FX Luminaire A-ST5

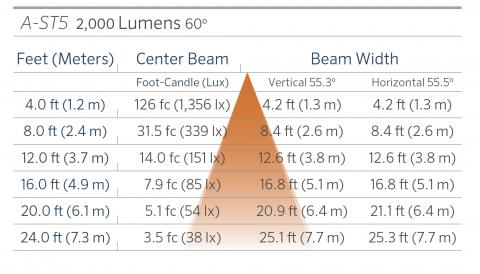

a st5 2000 60 FX Luminaire A-ST5

Additional information

Weight	6 lbs
Brand: No selection	FX Luminaire
Power Type: No selection	SV (120V/60Hz) Phase (UL listed)
Output: No selection	L07 (569-645 Lumens), L10 (824-895 Lumens), L13 (1,069-1,161 Lumens), L20 (1,682-1,836 Lumens)
Color Temperature: No selection	K27 (2,700K), K30 (3,000K), K40 (4,000K)
Optics: No selection	SP (20°), FL (40°), WF (60°)
Finish: No selection	BZ (Bronze Metallic), FB (Black), FW (Flat White), SV (Silver)
